12V to 220V inverter
« on: June 07, 2011, 03:06:31 PM »
mga sis, may availabe na po ba dito na thread about inverter? ;D Gusto ko kasing gumawa ng inverter na ang input is 12V DC at ang output ay 220V AC.. Yung makakapag-drive po sya ng 1 bulb at e-fan. ;D
Logged
Computer Engineering National Organization registration thread

Philippine Electronics Forum

12V to 220V inverter
« on: June 07, 2011, 03:06:31 PM »

Offline tiktak

  • Gas Turbine
  • **
  • Posts: 2864
  • Pogi/Ganda Points: 204
  • Gender: Male
    • Tiktakx's Blog
Re: 12V to 220V inverter
« Reply #1 on: June 07, 2011, 03:12:25 PM »
parang ganito ba prof? :D
Logged
8051 stuff

Philippine Electronics Forum

Re: 12V to 220V inverter
« Reply #1 on: June 07, 2011, 03:12:25 PM »

Offline ΔЅịMø

  • Gas Turbine
  • **
  • Posts: 2903
  • Pogi/Ganda Points: 140
  • Gender: Male
  • "Live Curious"
Re: 12V to 220V inverter
« Reply #2 on: June 07, 2011, 03:28:00 PM »
Parang ganyan nga po sir.. ;D Project nyo po sir? ;D
Logged
Computer Engineering National Organization registration thread

Philippine Electronics Forum

Re: 12V to 220V inverter
« Reply #2 on: June 07, 2011, 03:28:00 PM »

Offline MR. JUAN

  • Size AAA Battery
  • ***
  • Posts: 86
  • Pogi/Ganda Points: 1
  • Gender: Male
Re: 12V to 220V inverter
« Reply #3 on: June 07, 2011, 05:08:57 PM »

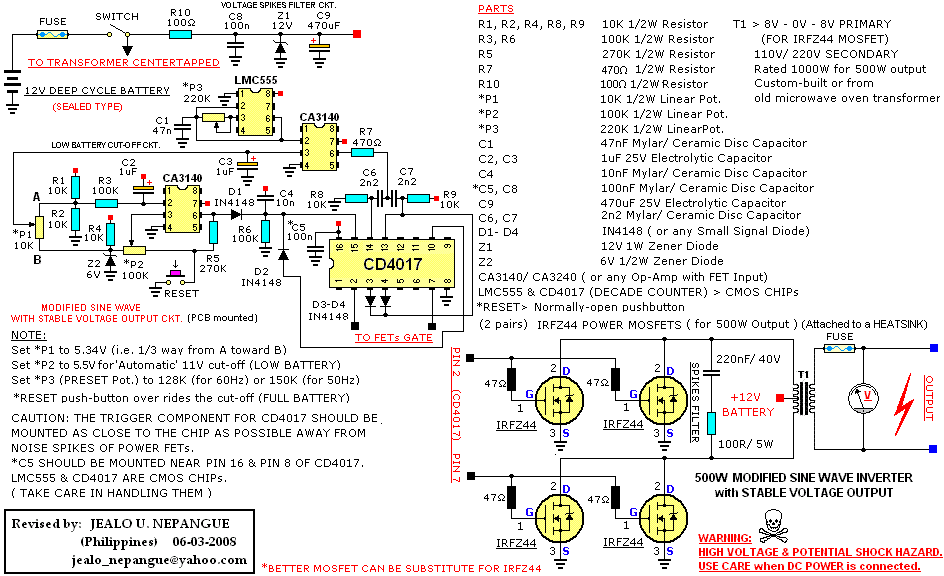

Baka interesado ka dito. :)
Bigay ng tropa ko. Kapangalan ko pa. hahahahaha!
Hindi sine wave ang output nito Modified-square wave lang pero ang peak voltage ay gaya ng sine wave voltage.

CAUTION: BE CAREFUL WHEN DC POWER IS CONNECTED! LETHAL VOLTAGE!

Goodluck. . .











-juan-
Logged
"One good reason for doing the right things   Today  ...is Tomorrow"

Philippine Electronics Forum

Re: 12V to 220V inverter
« Reply #3 on: June 07, 2011, 05:08:57 PM »

Offline ΔЅịMø

  • Gas Turbine
  • **
  • Posts: 2903
  • Pogi/Ganda Points: 140
  • Gender: Male
  • "Live Curious"
Re: 12V to 220V inverter
« Reply #4 on: June 08, 2011, 06:58:11 AM »
Copied na po.. ;D Salamas sis.. +1 po.. ;D
Logged
Computer Engineering National Organization registration thread

Philippine Electronics Forum

Re: 12V to 220V inverter
« Reply #4 on: June 08, 2011, 06:58:11 AM »

Offline MR. JUAN

  • Size AAA Battery
  • ***
  • Posts: 86
  • Pogi/Ganda Points: 1
  • Gender: Male
Re: 12V to 220V inverter
« Reply #5 on: June 08, 2011, 07:26:19 AM »
^ ur welcome bro. . . :) ingatzzz lang ha. Balitaan mo ako pagkatapos.
Logged
"One good reason for doing the right things   Today  ...is Tomorrow"

Offline noman75

  • Diesel Generator
  • *
  • Posts: 1858
  • Pogi/Ganda Points: 266
  • 09335154904 / 032-4848039
    • Here`s my blog....
Re: 12V to 220V inverter
« Reply #6 on: June 08, 2011, 07:30:02 AM »
pa subs din ako dito,, interesting!!! gusto ko ring gumawa nito...
Logged
NoMaNz 4-ever

Believe in Yourself!!! Swallow foods you need but not be greedy, share what you have, who knows you`re teaching now the future MASTERS.....


Here`s my blog....

http://noman75.blogspot.com/

Offline pete

  • Solar Power Satellite
  • *****
  • Posts: 6185
  • Pogi/Ganda Points: 776
  • Gender: Male
Re: 12V to 220V inverter
« Reply #7 on: June 08, 2011, 07:30:57 AM »
same here hehehe TS pag ok gawa din ako
Logged

Offline RaffT

  • Technical People
  • Hydroelectric
  • *****
  • Posts: 3440
  • Pogi/Ganda Points: 103
  • Gender: Male
  • more on R-n-D
    • MY Bots
Re: 12V to 220V inverter
« Reply #8 on: June 08, 2011, 07:45:00 AM »
Quote from: tiktak on June 07, 2011, 03:12:25 PM
parang ganito ba prof? :D


impakta ka talaga ;D
Logged
Learning is CooL! BEAM robotics/DIY UCD180/PSP/AC wtmtr/digiESRmtr/PICkit™2 clone/SGTC/SSTC/DR-SSTC

Never argue with an idiot... They'll take you down to their level and beat you with experience

Offline noman75

  • Diesel Generator
  • *
  • Posts: 1858
  • Pogi/Ganda Points: 266
  • 09335154904 / 032-4848039
    • Here`s my blog....
Re: 12V to 220V inverter
« Reply #9 on: June 08, 2011, 08:31:53 AM »
pero mas mabuti kung may lay-out yan master para wala ng  kamali-mali ;D
Logged
NoMaNz 4-ever

Believe in Yourself!!! Swallow foods you need but not be greedy, share what you have, who knows you`re teaching now the future MASTERS.....


Here`s my blog....

http://noman75.blogspot.com/

Offline ΔЅịMø

  • Gas Turbine
  • **
  • Posts: 2903
  • Pogi/Ganda Points: 140
  • Gender: Male
  • "Live Curious"
Re: 12V to 220V inverter
« Reply #10 on: June 08, 2011, 09:19:49 AM »
Quote from: RaffT on June 08, 2011, 07:45:00 AM
impakta ka talaga ;D

Sayo hu ata to sir Rafft.. ;D ;D Open po ba kayo i-share ang circuit nito? ;D
Logged
Computer Engineering National Organization registration thread

Offline ΔЅịMø

  • Gas Turbine
  • **
  • Posts: 2903
  • Pogi/Ganda Points: 140
  • Gender: Male
  • "Live Curious"
Re: 12V to 220V inverter
« Reply #11 on: June 08, 2011, 09:21:48 AM »
Quote from: peter on June 08, 2011, 07:30:57 AM
same here hehehe TS pag ok gawa din ako

OKay sis.. No problem.. ;D ;D Hahanapin ko muna yung IC.. Bka kasi hindi to available dito... ;D
Logged
Computer Engineering National Organization registration thread

Offline Ikasamoko

  • Solar Power Satellite
  • *****
  • Posts: 5732
  • Pogi/Ganda Points: 414
  • Gender: Male
  • ..sexually deficit..
    • My "BLAG!"
Re: 12V to 220V inverter
« Reply #12 on: June 08, 2011, 11:18:56 AM »
Anybody tried running the above schematic on Proteus? kahit yung drive section lang..
Logged

Offline greentech

  • LR44 Battery
  • *
  • Posts: 5
  • Pogi/Ganda Points: 0
Re: 12V to 220V inverter
« Reply #13 on: September 18, 2011, 06:52:17 PM »
Meron bang circuit na  pure sine wave na inverter; yong pareho sa waveform ng meralco.. Marami kasing inverter ngayon,merong square wave,modified sine square wave and pwm na sine wave; pag ginamit sa electirc fan o tv, me buzzing sound na naririnig, madali pang uminit ang fan motor worse, nasusunog ang motor.
Logged

Offline zrehtiek/keitherz

  • Lead Acid Battery
  • *******
  • Posts: 772
  • Pogi/Ganda Points: 45
  • Gender: Male
  • PhilRoboKit Anito
Re: 12V to 220V inverter
« Reply #14 on: September 18, 2011, 10:06:47 PM »
yung ginawa ni sir rafft na nasa video sa taas. pure sine yun. napapagana electric fan ng maayos and for sure gagana yung tv na walang buzz. pure sine at 60 hz.
Logged

Offline rdpzycho

  • Technical People
  • Solar Power Satellite
  • *****
  • Posts: 10767
  • Pogi/Ganda Points: 635
  • Gender: Male
  • Respect Begets Respect
    • rdpzycho
Re: 12V to 220V inverter
« Reply #15 on: September 18, 2011, 10:21:13 PM »
hingiin na lang schematic ni sis rafft. ;D
Logged
‎"Divide each difficulty into as many parts as is feasible and necessary to resolve it."
- Rene Descartes

"For every difficult problem there is always a simple answer and most of them are wrong."
- Clayton Paul

Offline zrehtiek/keitherz

  • Lead Acid Battery
  • *******
  • Posts: 772
  • Pogi/Ganda Points: 45
  • Gender: Male
  • PhilRoboKit Anito
Re: 12V to 220V inverter
« Reply #16 on: September 18, 2011, 10:27:38 PM »
pic based spwm daw yung source. tapos class-d amp (yung may triangle wave reference).
Logged

Offline drin20

  • Size D Battery
  • ******
  • Posts: 478
  • Pogi/Ganda Points: 17
Re: 12V to 220V inverter
« Reply #17 on: May 14, 2012, 10:44:51 PM »
galing talaga nan.
Logged

Offline bryanwizard

  • CR2032 Battery
  • **
  • Posts: 38
  • Pogi/Ganda Points: 0
Re: 12V to 220V inverter
« Reply #18 on: July 25, 2012, 11:10:47 PM »
possible way for pure sinewave is used a multistage topology
Logged

Offline Super zHero

  • Lead Acid Battery
  • *******
  • Posts: 844
  • Pogi/Ganda Points: 75
  • That's not me but might as well be.
Re: 12V to 220V inverter
« Reply #19 on: July 26, 2012, 09:44:24 AM »
Medyo complicated gumawa from scratch ang pure sinewave na inverter.  Meron na naman available from a distributor dito sa Pinas.  12V or 24V source.  Hahanapin ko yung flyer ko.
Logged
