Author Topic: HELP!!! logic experts.......... (Read 1408 times)

rinkashe · « **Reply #20 on:** March 30, 2012, 11:59:31 AM »

at isa pa sir di po gumagana ang counter namin may mali po ba sa diagram??? sir kailangan pa ba namin ng monostable timer? at tama po ba sir na ang clock sa latch ay naka connect sa debouncer bali ang clock napo namin sir ay yong debouncer...

Philippine Electronics Forum · « **Reply #20 on:** March 30, 2012, 11:59:31 AM »

motion55 · « **Reply #21 on:** March 30, 2012, 12:28:50 PM »

Quote from: rinkashe on March 30, 2012, 11:55:44 AM

sir bali sa left side na push button bali yan ang count up ng bawat teller at sa kabila ay ang count down ng bawat teller. tag iisa sila ng push button..

Bakit ganun? May count down. Diba ang queueing pasulong parati?

BTW, ang pin 11 (Load) ng 74192 ay dapat pull-up.

Philippine Electronics Forum · « **Reply #21 on:** March 30, 2012, 12:28:50 PM »

rdpzycho · « **Reply #22 on:** March 30, 2012, 12:38:58 PM »

^ minsan sir rine-request ng mga bumibili para pwedeng balikan 'yung mga hindi lumalapit (baka sakaling lumabas lang daw sandali, etc.). or kapag na-misfire lang 'yung count UP nung teller.

Philippine Electronics Forum · « **Reply #22 on:** March 30, 2012, 12:38:58 PM »

motion55 · « **Reply #23 on:** March 30, 2012, 04:20:06 PM »

Quote from: rdpzycho on March 30, 2012, 12:38:58 PM

^ minsan sir rine-request ng mga bumibili para pwedeng balikan 'yung mga hindi lumalapit (baka sakaling lumabas lang daw sandali, etc.). or kapag na-misfire lang 'yung count UP nung teller.

This is meant to be an exercise sa logic design sa eskwela and not a commercial product. Baka maging too complicated at di makaya ng mga studyante. Having to deal with two tellers pressing at the same time is hard enough. But one teller pressing his/her up button and the other teller pressing the down button...

Sa ngayon they can't even produce a two digit counter circuit that works. Paano pa ang logic ng clocking and latching from two tellers with just the up buttons?

Philippine Electronics Forum · « **Reply #23 on:** March 30, 2012, 04:20:06 PM »

rinkashe · « **Reply #24 on:** March 30, 2012, 04:43:35 PM »

yes sir we put count down baka kasi ma double click sa teller yong button so mag create po yon nang another trigger sA counter.. parang ganun sir...

Philippine Electronics Forum · « **Reply #24 on:** March 30, 2012, 04:43:35 PM »

rinkashe · « **Reply #25 on:** March 30, 2012, 04:47:57 PM »

sir pwidi hingi kami nang sample schematic nang queuieng system?

rdpzycho · « **Reply #26 on:** March 30, 2012, 05:04:09 PM »

Quote from: motion55 on March 30, 2012, 04:20:06 PM

This is meant to be an exercise sa logic design sa eskwela and not a commercial product. Baka maging too complicated at di makaya ng mga studyante. Having to deal with two tellers pressing at the same time is hard enough. But one teller pressing his/her up button and the other teller pressing the down button...

Sa ngayon they can't even produce a two digit counter circuit that works. Paano pa ang logic ng clocking and latching from two tellers with just the up buttons?

iba na kasi ang mga prof ngayon sir, ayaw na nila nung simple exercises lang sa project.

♪ ♫ ♫ ♪ ♪ ♪ ♫ ♫ ♫ · « **Reply #27 on:** March 30, 2012, 05:07:39 PM »

ibigay sa customer yong down count button para paglumampas sa numero niya, e down count niya

para walang suntokan

♪ ♫ ♫ ♪ ♪ ♪ ♫ ♫ ♫ · « **Reply #28 on:** March 30, 2012, 05:36:17 PM »

ito praktical na problema sa priority number counters, kung pwede lagyan nyo ng electronic bell yong counter!

dapat kada pendot nong teller o tindera dapat mag-bell naman para wala ng sigawan at ma alert naman kaming nagpipila na nagchange na yong number.

yong up count dapat isa lang TINNG!!

yong down count dapat marami... ting ting ting ting!!!!

okay ts? pagnagawa mo ito pasado kana..

motion55 · « **Reply #29 on:** March 30, 2012, 06:00:47 PM »

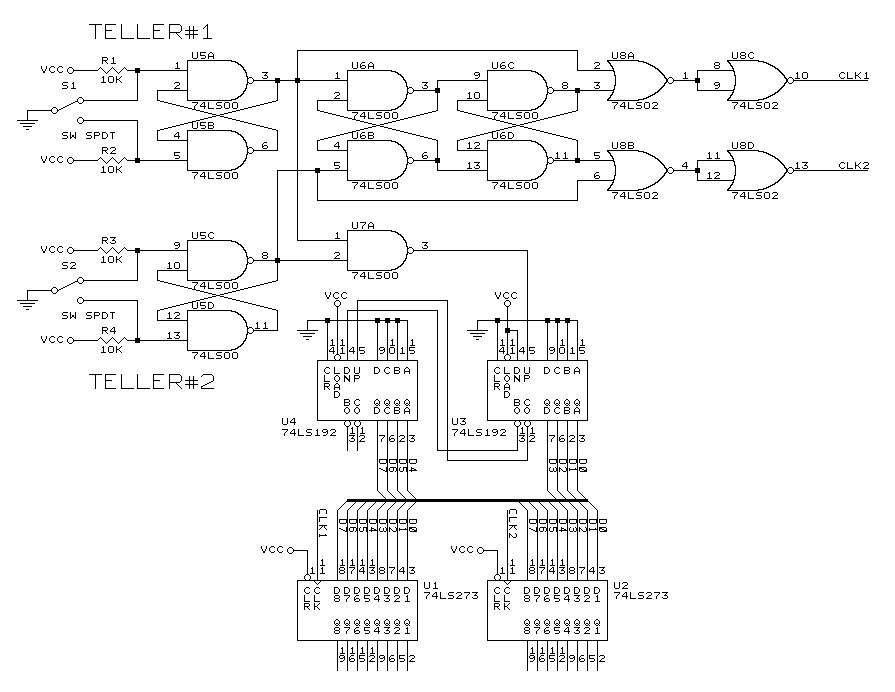

Eto ang "sample". Pwede pa ma improve. Like, pwede ninyo lagyan ng down count. Pwede ma improve ang debounce. Pwede lagayn ng "bell". But IMHO, it's outside the scope of the exercise at ginawa nang negosyo.

motion55 · « **Reply #30 on:** March 30, 2012, 07:19:38 PM »

Quote from: rdpzycho on March 30, 2012, 05:04:09 PM

iba na kasi ang mga prof ngayon sir, ayaw na nila nung simple exercises lang sa project.

Sounds like ninenegosyo nila. Kung ayaw nilang simple, they should stop reusing these exercises. Parang wala na silang alam iba. GSM, queueing system, etc. Paulit ulit lang. The students will simply build upon or reuse mga ginawa ng iba.

carlsfootprints · « **Reply #31 on:** March 30, 2012, 10:48:10 PM »

Quote from: motion55 on March 30, 2012, 07:19:38 PM

Sounds like ninenegosyo nila. Kung ayaw nilang simple, they should stop reusing these exercises. Parang wala na silang alam iba. GSM, queueing system, etc. Paulit ulit lang. The students will simply build upon or reuse mga ginawa ng iba.

this is true.. paulit-ulit na lang.. hehe.. minsan kasi, wala ring initiative ung mga students to go out their comfort zones at magexplore.. maybe lack of interest or sadyang ginagawa na lang ung mga requirements for the sake na pumasa.. si prof naman, mairaos lang ung sem ok na

---------------------------------------

pero meron pa ring mga prof na ayaw ng paulit-ulit.. ayun.. daming binabagsak..

---------------------------------------

@ts, goodluck sa "pagbuo" ng circuit.. kaya nyo yan.. pagkatapos ng sem, try to reflect kung anong natutunan mo
