SAMSUNG WASHING MACHINE MODEL: WA10F4 help po..

Offline ultrasonic™

  • *****
  • 8374
  • 1191
  • Gender: Female
  • never be harsh coz everythng is fine
Re: SAMSUNG WASHING MACHINE MODEL: WA10F4 help po..
« Reply #20 on: January 15, 2014, 10:32:03 AM »
correct lng natin mga sis.. baka maligaw ang mga mambabasa at mga newbie tulad ko ;D

ang water inlet valve ay magsisilbing electronic faucet... yan ang nagbubukas ng daanan para padaluyin ang tubig



dapat lagi nakabukas ang faucet niyo... kong gusto niyo mag automatic xang maglaba, magbanlaw, at magpatuyo

bali ganito ang normal set-up
mula sa faucet...

kinakabit ang adapter sa plain faucet (wag yung thread type ha.. para walang water leak)









then sunod na yung water supply Hose





sa dulo nyan ay ang opening thread na ng water inlet valve...





ngayon kong yung screen ng water inlet ang may mga duming nkastock ay malaking epekto yun sa water delivery...





matagal ang daloy ng tubig nyan which is di niya mafifill up agad ng tubig ang water tub which is  tagal din ng maka sense ng proper level ang water sensor...

http://www.samsung.com/us/support/howtoguide/N0000214/9498/106421/Y/

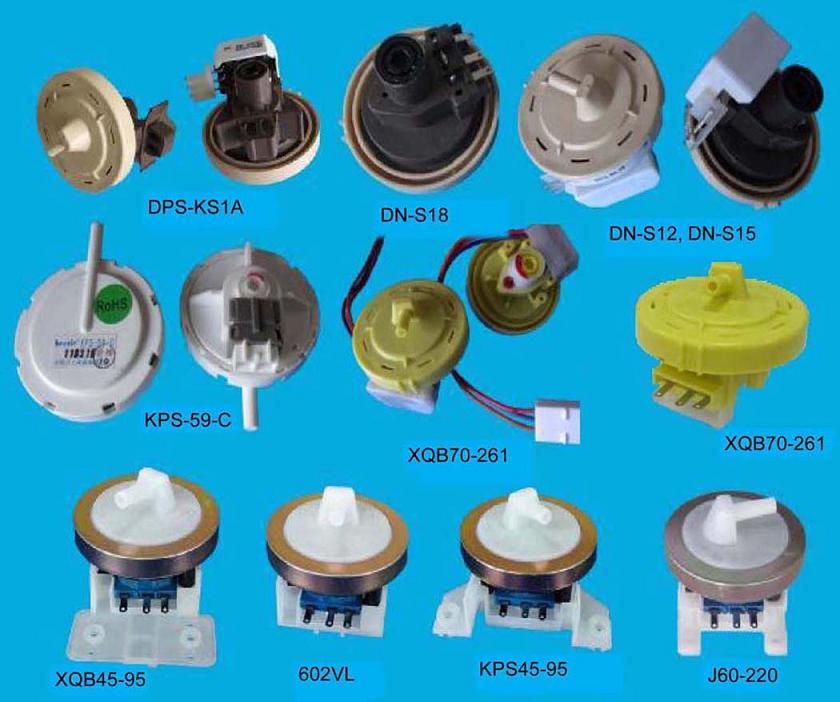

eto naman yung water level sensor mga sis...



may silicon hose yan naka directly attach sa water tub...
ung air pressure ang mapapaactivate sa sensor

ah eto nlng nood tayo para may video tutorial ;D

http://www.youtube.com/watch?v=qY3USuxqQ-E

naway makatulong ;D
