(MC34063) 5v to 9v and 12 volts ouput
« on: February 13, 2020, 11:25:09 AM »
Good Day uli mga Masters



Paano po kaya malalagyan ko ng 9v output nang hinde gumagamit ng 7809 voltage regulator?
Pwedi po kaya ang series ng diode?

Balak ko pong gawin may two ang output niya 9v at 12v.

Thanks po ng marame...
Think twice before you do it... don't believe on destiny... believe on what you can do...

Re: (MC34063) 5v to 9v and 12 volts ouput
« Reply #1 on: February 13, 2020, 02:40:06 PM »
Adjustable ang output nyan boss,,yan ang purpose nung trimmer nya na 1K sa feedback,see diagram. kung di maabot ang desired output na 9 volts pwede mo i-modify yang feedback resistor.

Offline Brilliantes

  • *****
  • 204
  • 4
  • Gender: Male
  • Just do it, damn it...
Re: (MC34063) 5v to 9v and 12 volts ouput
« Reply #2 on: February 13, 2020, 06:09:14 PM »
:) thanks po
Think twice before you do it... don't believe on destiny... believe on what you can do...

Offline >>>^żżż^<<<

  • *****
  • 13845
  • 706
  • żżż
Re: (MC34063) 5v to 9v and 12 volts ouput
« Reply #3 on: February 14, 2020, 12:14:10 AM »
consult datasheet at application notes nandun iyan adjstable iyan
http://www.elab.ph/index.php?topic=52236.0 TF?
http://www.elab.ph/index.php?topic=41860 ? ? ? DIY traffo Test Build Uli
http://www.elab.ph/index.php?topic=33717  I2c / spi programmer
http://www.elab.ph/index.php?topic=37150.0 Lcr esr makikigulo rin ba kayo ??? Test Build
http://www.elab.ph/index.php?topic=29963.0 Esr collection na malamig
http://www.elab.ph/index.php?topic=25854.0 Basic C++ Programming Tutorials by Prof Asimo
We only live once,treasure those we love, make friends not enemies and keep our family closer. And we will be at peace.
FISH

Offline zirlou21

  • *******
  • 750
  • 84
  • Gender: Male
  • I wish there is GOD...
    • ARDUINO,ATMEL-AVR,ZILOG ENCORE,PIC..CIRCUITS/APPS
Re: (MC34063) 5v to 9v and 12 volts ouput
« Reply #4 on: February 14, 2020, 12:37:48 AM »
 :D :D :D

...kung two output voltage need mo
ndi pwd sabay na makuha sa ckt mo.
ang trimmer ay para iset sa
one fixed output voltage lamang.
kung low ampere lang need mo para sa 9volts
gamit ka na lang 78L09
TO-92 package..
...NO OFFENSE pls..usapang teknikal lang,walang personalan.....

Offline motion55

  • *****
  • 3169
  • 520
  • Gender: Male
  • Been at this longer than you've been alive.
Re: (MC34063) 5v to 9v and 12 volts ouput
« Reply #5 on: February 14, 2020, 11:04:04 AM »

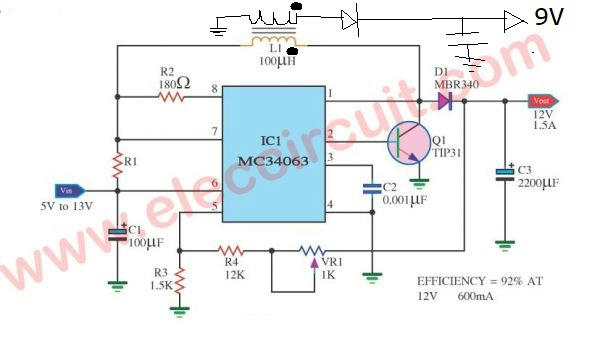

Too bad boost converter. The output voltage is dependent on the input voltage. So assuming the input is 5V, then the L1 forward voltage is 12-5 = 7V at the output of 12V.  You can add a secondary coil with turns ratio of 9:7 to get about 9V. The diode forward drop is ignored.

So kung kaya bilangin ang turns ng L1, then add a 2nd  coil of wire wrapped to the same core. By a turns ratio of about 9:7, kung say 35 turns ang count ng L1, then wrap 45 turns to get 9V. Connect one end of the 2nd coil to GND and the other one to a fast rectifier diode. Of course add a capacitor to filter the ripple. For proper operation, take note of the polarity of the windings (the dots).
